PowerConnect for SAP Solutions
Breadcrumbs

CCMS

Data Description

The CCMS event is used in SAP to monitor, control, and configure the SAP system. CCMS stands for Computing Center Management System, and contains a series of pre-packaged metrics which can be alerted on.

Potential Use Cases

This event could be used in the following scenarios:

  • Chart environment availability over time.

  • Alert on specific CCMS alert metric values.

Splunk Event

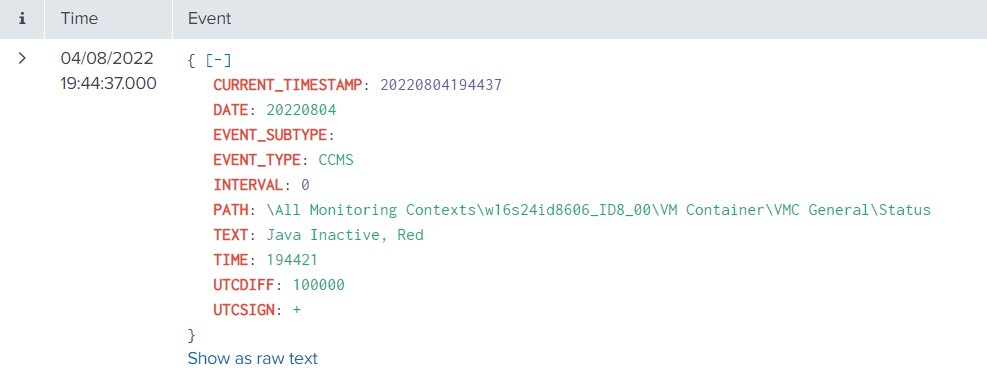

The event will look like this in Splunk:


SAP Navigation

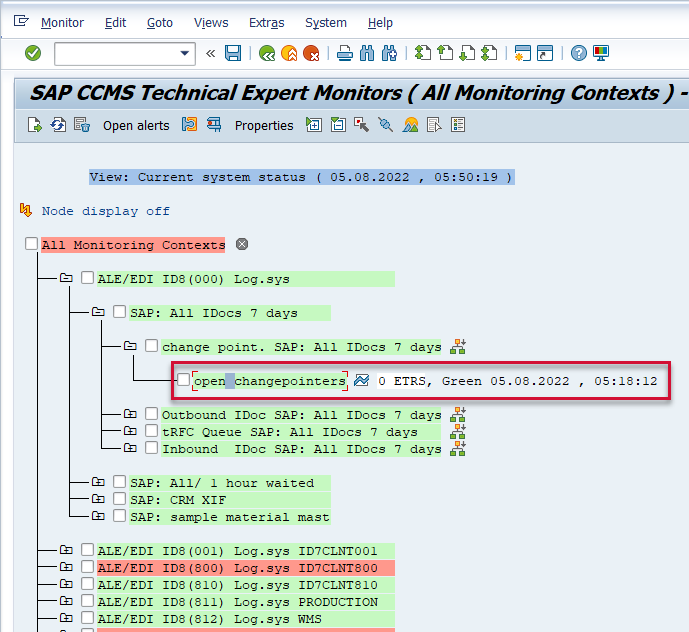

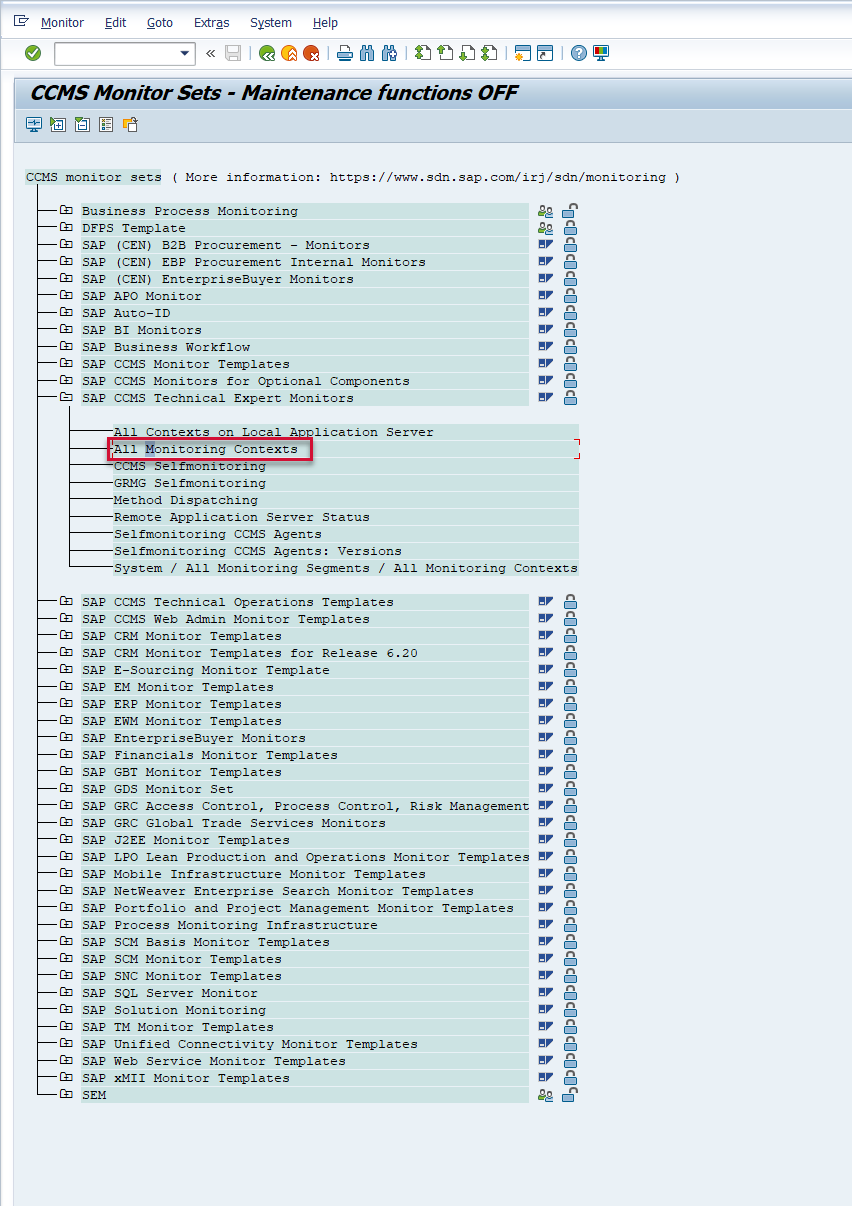

Execute the RZ20 transaction in the SAP system, and double-click on the node of interest:


Expand the folder path of interest. The metric and value displayed will match the data that is extracted and sent to Splunk.
