DB6_DB02_FSYST

Data Description

The DB6_DB02_FSYST event is used in SAP to view DB2 database file system storage.

Potential Use Cases

This event could be used in the following scenarios:

  • Identify storage utilization over time by mount.

  • Trend file system growth over time.

Splunk Event

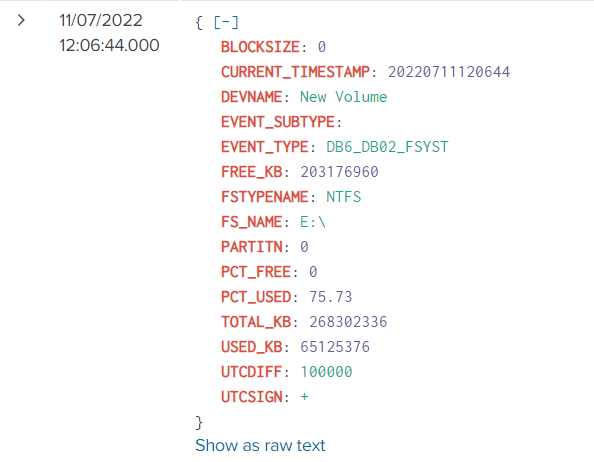

The event will look like this in Splunk:


SAP Navigation

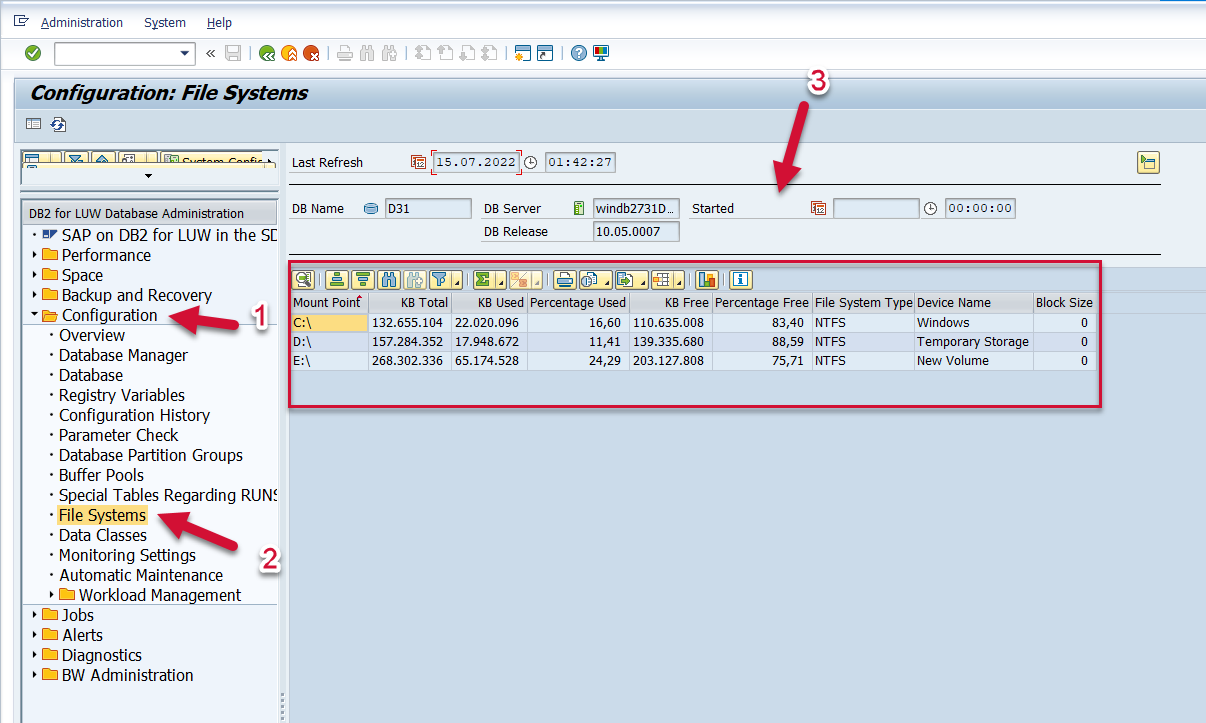

Execute the dbacockpit transaction in the SAP system. Open the Configuration folder, and double-click File Systems. The data displayed on the right side of the screen will match the data that is extracted and sent to Splunk.
