KB 79 - UI ws_policy After Upgrade

KB 79 (Java): UI ws_policy After Upgrade

Description

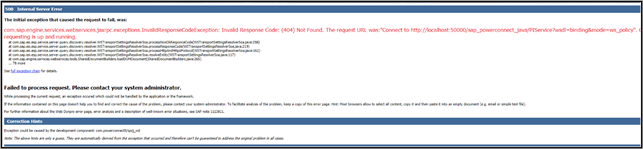

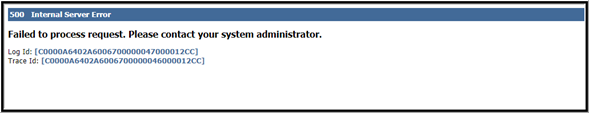

In some cases, the following error may occur after the upgrade of PowerConnect (The below two screenshots show the error in Netweaver 7.40 and 7.50) In both cases the logs indicate an error relating to the ws_policy.

The request URL was:"Connect to http://localhost:50000/sap_powerconnect_java/PIService?wsdl=binding&mode=ws_policy

DefaultTrace.log

[EXCEPTION]

com.sap.tc.webdynpro.services.exceptions.WDRuntimeException: Exception was thrown in preprocessing phase of application session…..

Caused by: com.sap.tc.webdynpro.model.webservice.exception.WSModelRuntimeException: …….. ……. application name 'com.powerconnect5/spcj_wd'. Check mass configuration has been done properly.

Caused by: com.sap.esi.esp.service.server.query.discovery.ExtendedServiceException: Cannot load WSDL: http://<host>:<port>/sap_powerconnect_java/JMXService?wsdl=binding&mode=ws_policy.

Resolution

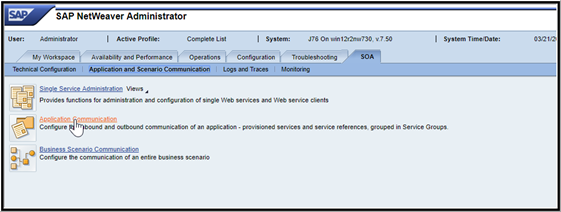

Go to http://<host>:<port>/nwa → SOA Tab → Application Communication

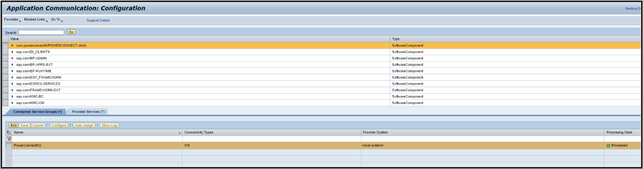

Select the POWERCONNECT-JAVA line

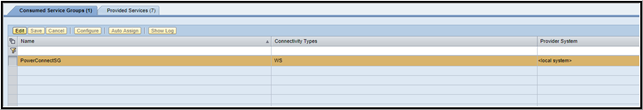

Select PowerConnectSG under “Consumed Service Groups”

Select “Edit”

In the “Provider System” column change <local system> to <none>

Save Change

Edit line again

In the “Provider System” column change <none> to <local system>

Save Change

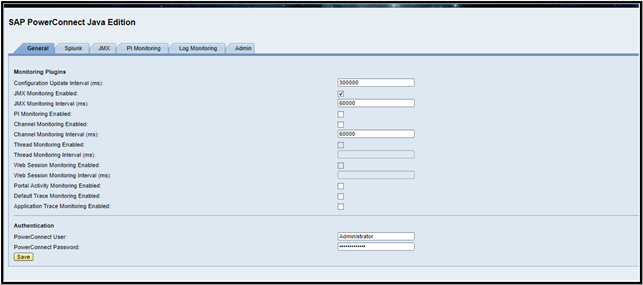

Refresh the UI screen.

Product version

[SAP product version]
